The EKM Omnimeters have an LCD screen which is always on if the Omnimeter is powered up. The values on the screen cycle once every 5 seconds or so. Only one value is displayed at a time. The small 2 digit number on the left of the screen indicates which value is being displayed (see the # column in the tables below).
===
Each v.3 Omnimeter cycles through 15 different values on its LCD display. Each value is indicated by a number on the left of the meter's screen. This is what each number equates to:

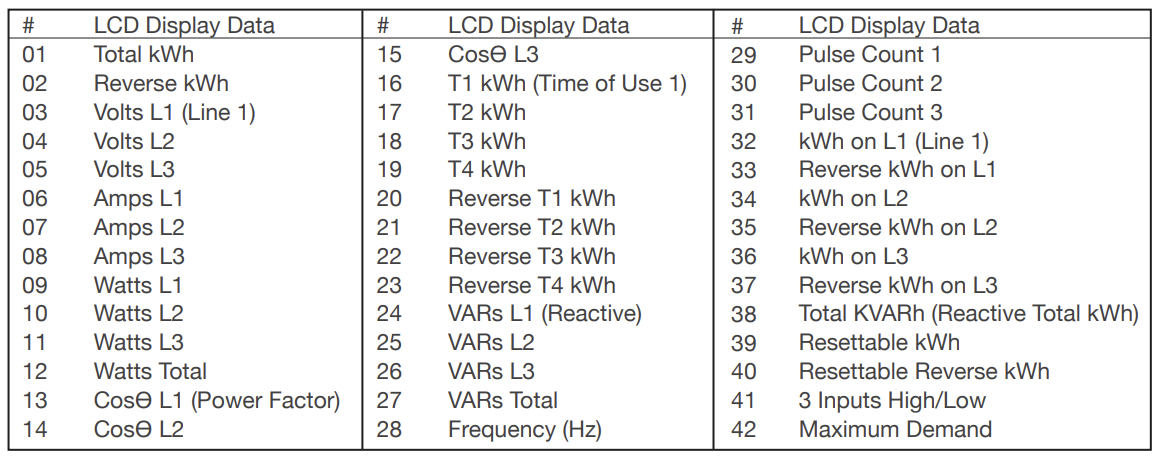

v.4 and v.5 Omnimeter models cycle through 40 different values on its LCD display by default. Each value is indicated by a number on the left of the screen. This is what each number equates to:
The v.4 and v.5 Omnimeter models allow you to set which value(s) display on the screen according to what you want to read. This is a setting that can be made inside the meter using a Push3 and the meter settings options in your account portal, or by using our EKM Dash software when the Omnimeter is connected directly to a computer with our EKM Blink USB converter. Here is a Tutorial about how this is done.
For a description of each of these metered values go to the Glossary of Omnimeter Data Terms
The LED to the right of the LCD display blinks 800 times per kWh if the Omnimeter is set to use 200 amp CTs.
Below is an Omnimeter LCD screen that is displaying 01 at the small digits on the left, indicating the current LCD screen is showing Total kWh. It is currently reading 94712.29 Total kWh as an example. The black dot at the bottom reads T1, this indicates that the meter is currently adding kWh to the Time-of-Use bucket 1
